Triplanar Mapping
Target Audience: Intermediate devs, comfortable creating materials and/or shaders in their chosen engine.
Implementation Examples: Unity + UDK
Last Updated: Jan 2014
Index:
The Theory
So, what is this triplanar mapping, and what’s it for? The general idea is that we map a texture three times with planar maps (thus the tri-planar bit) along the X, Y, and Z axes, and then blend between these three samples based on the angle of the face, using the one that fits best with the least stretching. In theory we’ll never have a stretched texture or hard seams, and we don’t even have to UV map our mesh!
Look Ma, no seams!
So, how do we go about this? The first thing we want to do is generate the three planar UV sets that we'll be using. For this, we'll use the world position of our fragment. If we use the XZ world position of our fragment as the UV coordinate to sample from, it will give us a planar map projecting from the Y axis. We can also get an X projection using the ZY position, and a Z projection from the XY position.
We're also going to need a blend weight to decide what UV set to use. We base this off of the world vertex normal. We can use the absolute value of each axis, so if the surface normal is pointing strongly in the positive or negative Y direction for example, we can blend in more of the texture sample from the Y-projected plane.
Drawbacks
Because normal mapping relies on a mesh’s tangents jiving with it’s UVs, and since we’re using the world coordinates as stand-ins for our UVs, the tangents of the mesh certainly won’t jive. You can still use normal maps to give some lighting variation to the surfaces, but they won't be correct.
It's also not as efficient as traditional UV mapping. The calculations to determine the UV coordinates and blend weight isn't too performance heavy, but we are taking 3 times the texture lookups than we would be otherwise. This isn't too bad when we're just sampling diffuse textures, but if you're also planning to sample specular maps, detail maps, normal maps, etc; you'll have to keep an eye on the number of samples you're using.
Implementation - Unity
Shader "TriplanarTutorial/Triplanar_Final"
{
Properties
{
_DiffuseMap ("Diffuse Map ", 2D) = "white" {}
_TextureScale ("Texture Scale",float) = 1
_TriplanarBlendSharpness ("Blend Sharpness",float) = 1
}
SubShader
{
Tags { "RenderType"="Opaque" }
LOD 200
CGPROGRAM
#pragma target 3.0
#pragma surface surf Lambert
sampler2D _DiffuseMap;
float _TextureScale;
float _TriplanarBlendSharpness;
struct Input
{
float3 worldPos;
float3 worldNormal;
};
void surf (Input IN, inout SurfaceOutput o)
{
// Find our UVs for each axis based on world position of the fragment.
half2 yUV = IN.worldPos.xz / _TextureScale;
half2 xUV = IN.worldPos.zy / _TextureScale;
half2 zUV = IN.worldPos.xy / _TextureScale;
// Now do texture samples from our diffuse map with each of the 3 UV set's we've just made.
half3 yDiff = tex2D (_DiffuseMap, yUV);
half3 xDiff = tex2D (_DiffuseMap, xUV);
half3 zDiff = tex2D (_DiffuseMap, zUV);
// Get the absolute value of the world normal.
// Put the blend weights to the power of BlendSharpness, the higher the value,
// the sharper the transition between the planar maps will be.
half3 blendWeights = pow (abs(IN.worldNormal), _TriplanarBlendSharpness);
// Divide our blend mask by the sum of it's components, this will make x+y+z=1
blendWeights = blendWeights / (blendWeights.x + blendWeights.y + blendWeights.z);
// Finally, blend together all three samples based on the blend mask.
o.Albedo = xDiff * blendWeights.x + yDiff * blendWeights.y + zDiff * blendWeights.z;
}
ENDCG
}
}

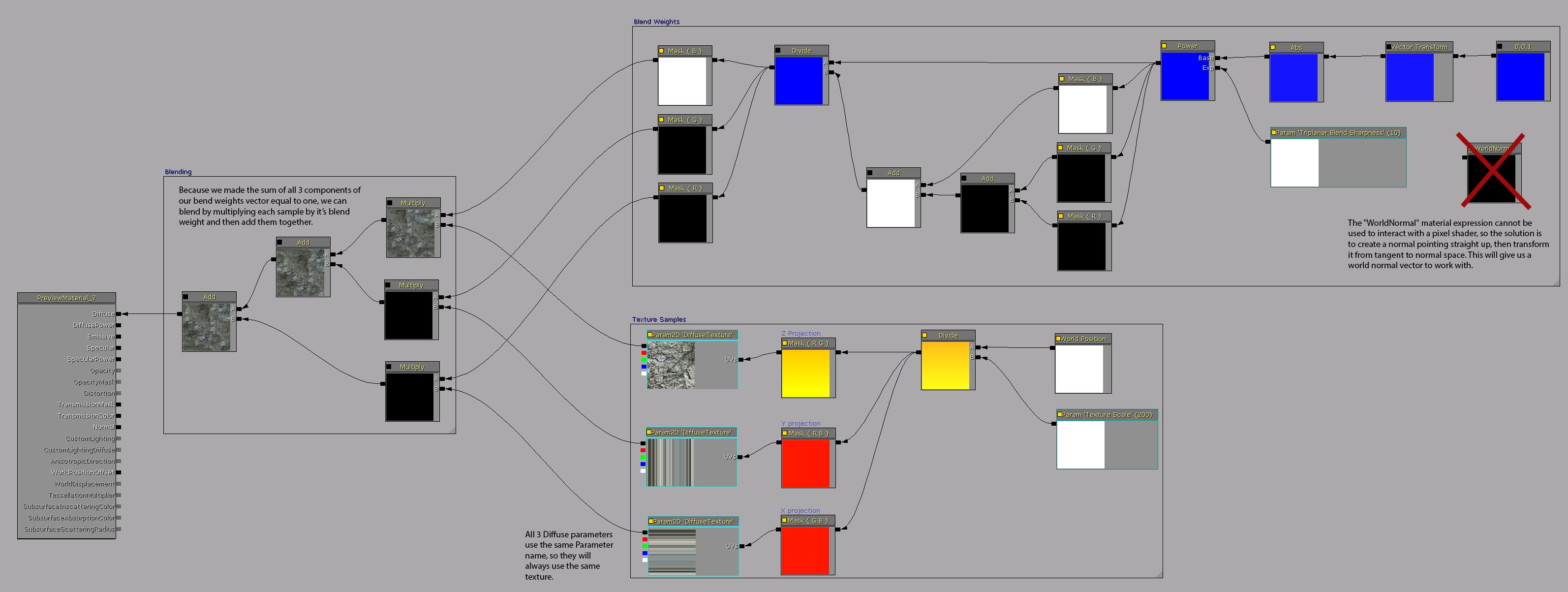

Implementation - UDK
.
Uses
I utilized triplanar mapping to create this canyon in Project Full Throttle.
Terrain: Probably the best use of triplanar mapping, using it with a terrain shader allows you to have steep inclines and more complex shapes than would be possible with just planar mapping.
Rocks: When creating rocks, you can bake normals from a high poly mesh, but use triplanar mapping for the diffuse texture to avoid seams.
Trees: Tree trunks and branches can be a pain to UV, and their seams are often very noticeable. Use a triplanar shader on them to eliminate seams completely.
Placeholder assets: Triplanar mapping lets you quickly throw on generic textures or grids on placeholder or WIP assets that may not be UV mapped.
Voxel Rendering: Because voxel rendering procedurally creates geometry, triplanar mapping is an ideal way to generate texture co-ordinates.
Have some feedback? I'd love to hear it. Find out how to get a hold of me on the About Page.
